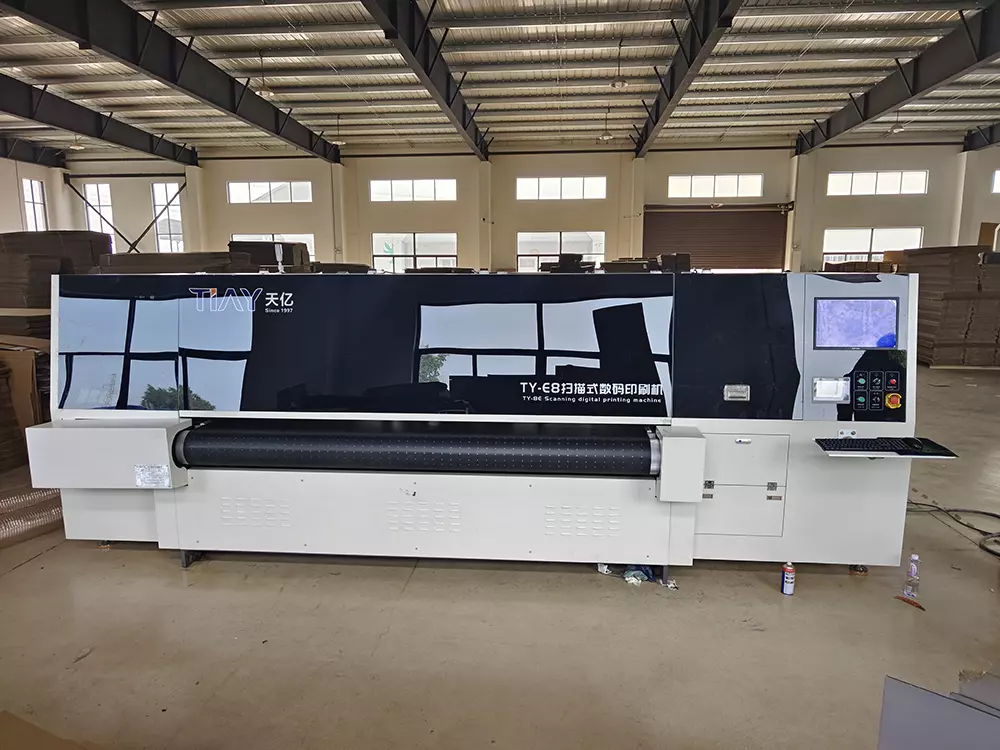

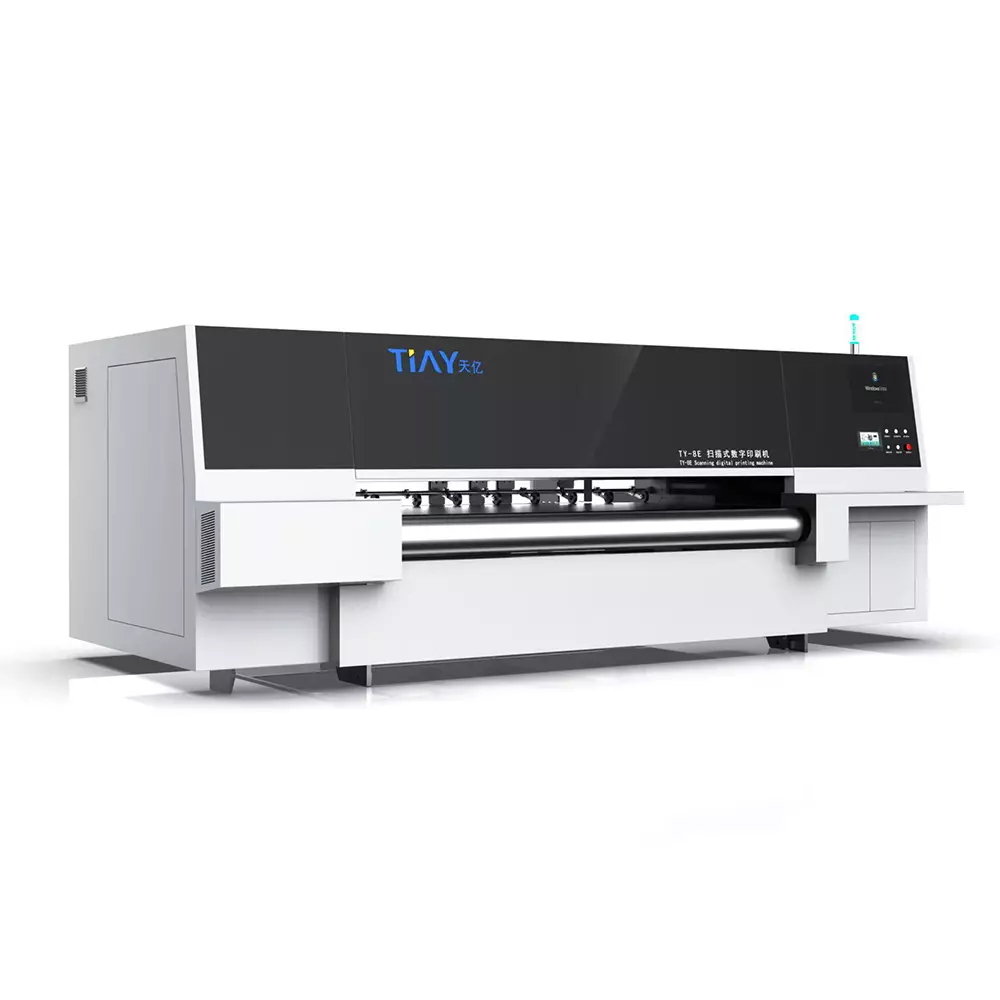

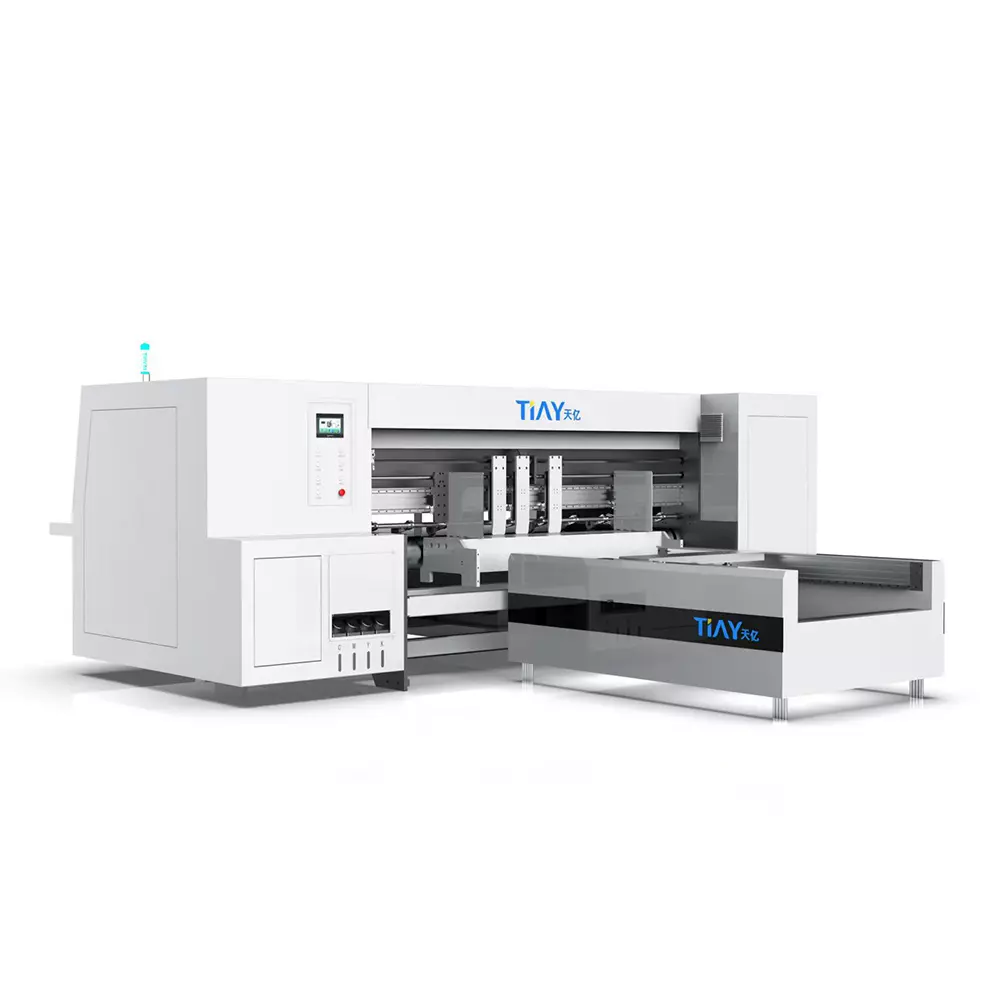

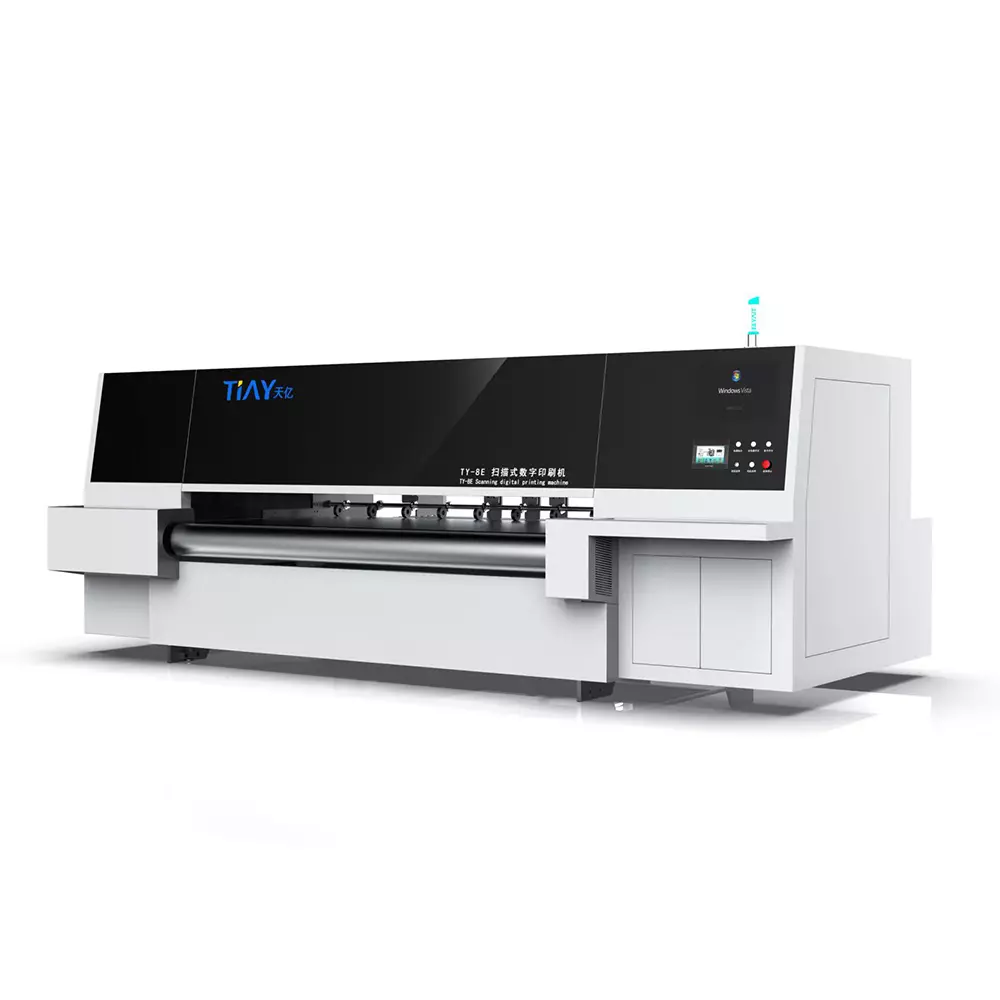

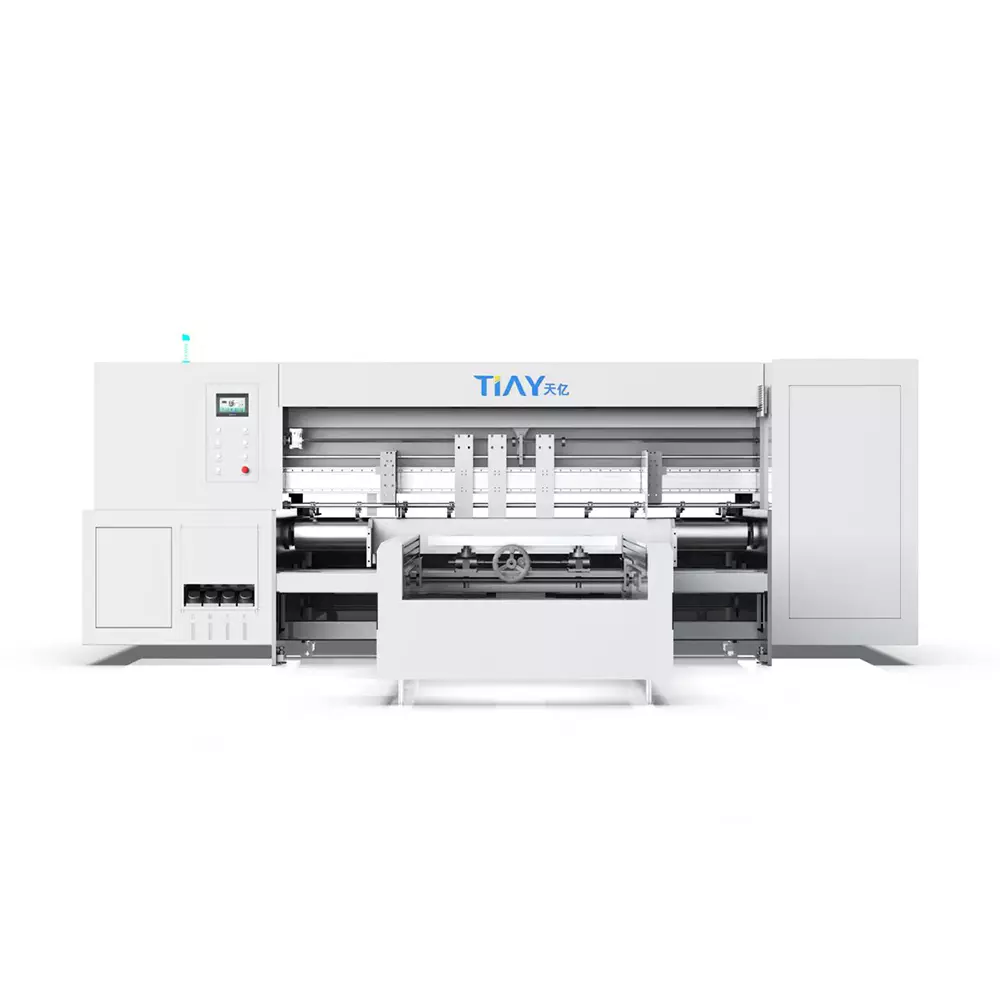

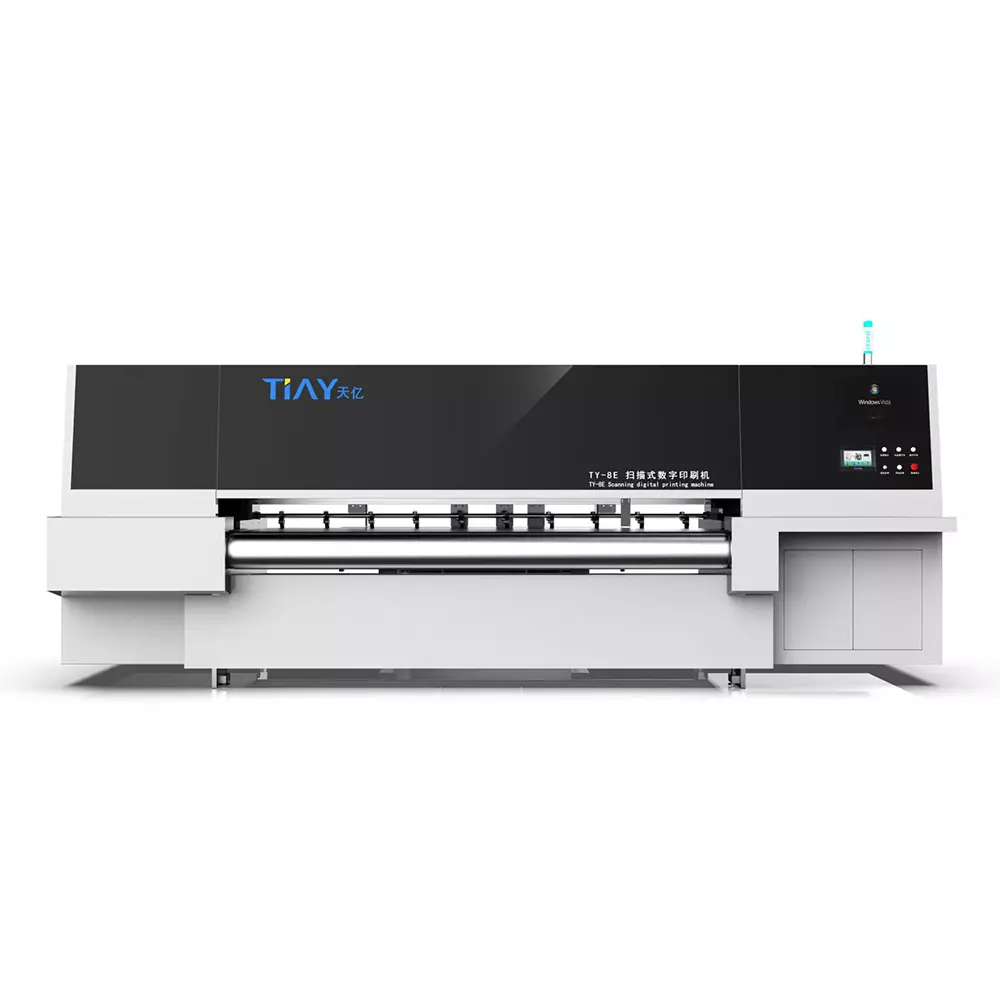

TY-E8 Scanning Digital Printing Machine
|
TY-E8 Multi functional scanning digital printing machine equipment parameters |
|
|
Device Model |
TY-E8/E16
|
|

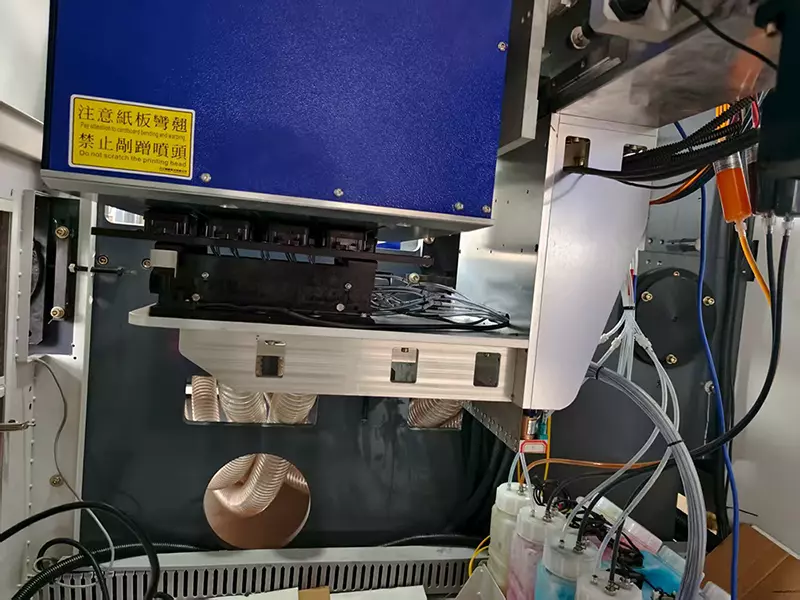

Nozzle configuration |
Standard configuration includes 8 industrial Epson I3200-AI nozzles, with a single nozzle printing resolution of 600dpi, and a four-color model |
|
color combination |
Four color standard, six color optional (currently printing effect does not require six colors) |
|
Printing resolution |
600 dpi |
|
Print width/thickness/length |
The maximum printing width is 516mm, the maximum printing thickness of the material is below 40mm, and the maximum printing length is 3200mm |
|
ink supply system |
Automatic ink supply system (ink shortage alarm) |
|
software interface |
USB 3.0 interface |
|
RIP software computer system requires operating system |
Print shop software |
|

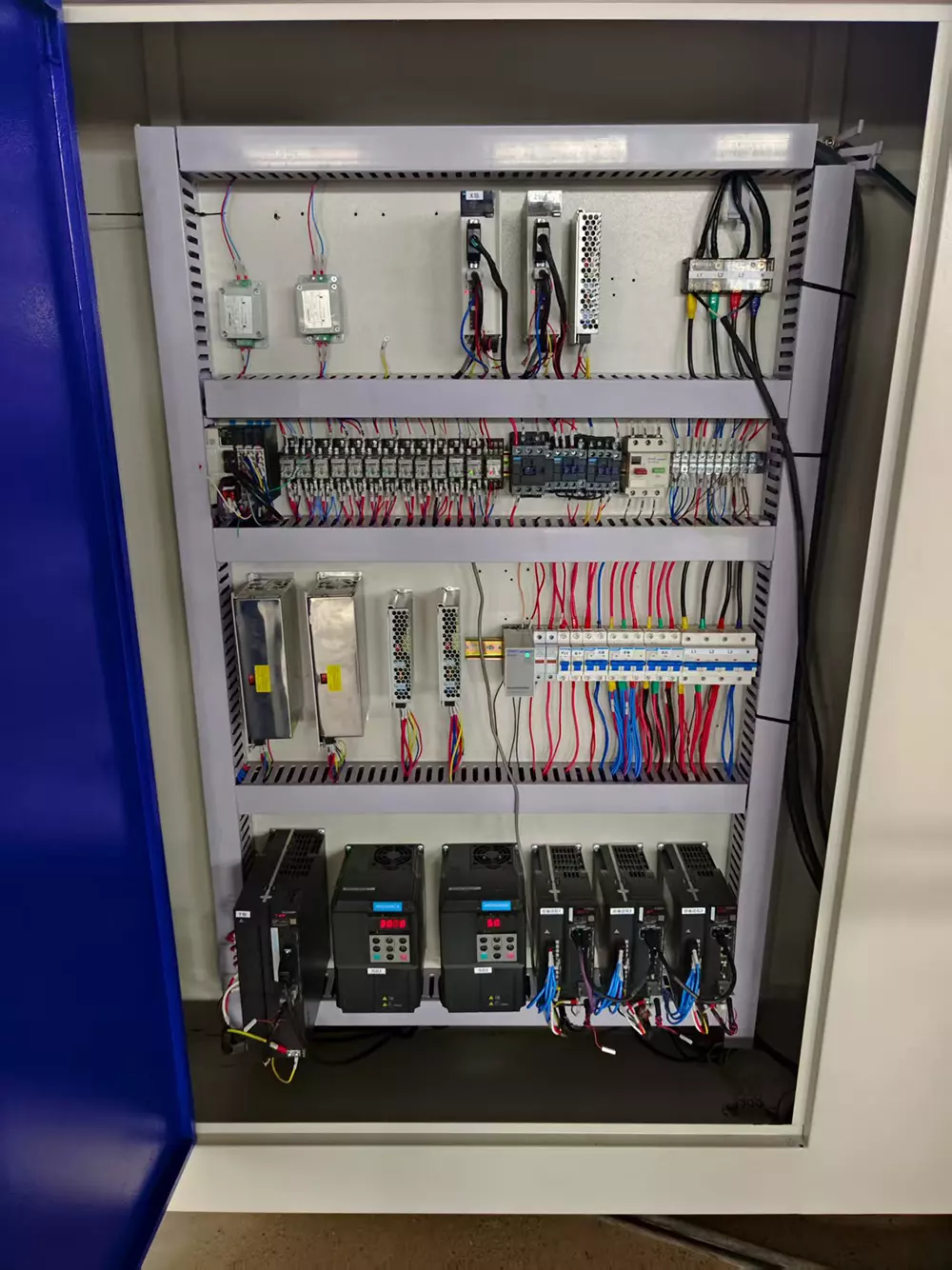

X&Y&Z-axis motors |
Huichuan servo motor |
|
Printing ink volume |
3.5PL, Ink droplet size adjustable |
|
wire speed |
The walking scanning speed of the car is 1.2 meters per second, and the feed step speed is 30 meters per second. |
|
production capacity |
The walking scanning speed of the car is 1.2 meters per second, the high-speed mode is 1.8 meters per second, and the feed step speed is 30 meters per second. (including feeding time), Multi pass high-speed printing at 700 ㎡/hour (including feeding) |
|
Ink type |
Environmentally friendly water-based dye ink (VOC free) |
|
Color |
C M Y K |
|
Environmental requirements |
Environmental temperature of 22-30 ℃, relative humidity of 40% -60%, equipped with clean positive pressure air |
|
media information |
Maximum printing width: 2500mm, paper width: 2550mm, thickness: 1.5-30mm |
|
Device dimensions |
3500mmX4800mmX1900mm |
|
Net weight of equipment |
3500KG |
|
Air source requirements |
Pressure ≥ 6Kg/c ㎡, flow rate ≥ 34liters/min |
|
Power and electricity consumption |
Three phase electricity 380V, 20A, 50HZ, total power 8KW |
|
Factory land specifications and dimensions |
Dimension： 7200mm X 6800mm X 2000mm Gross weight: 3500kgs Net weight of equipment |

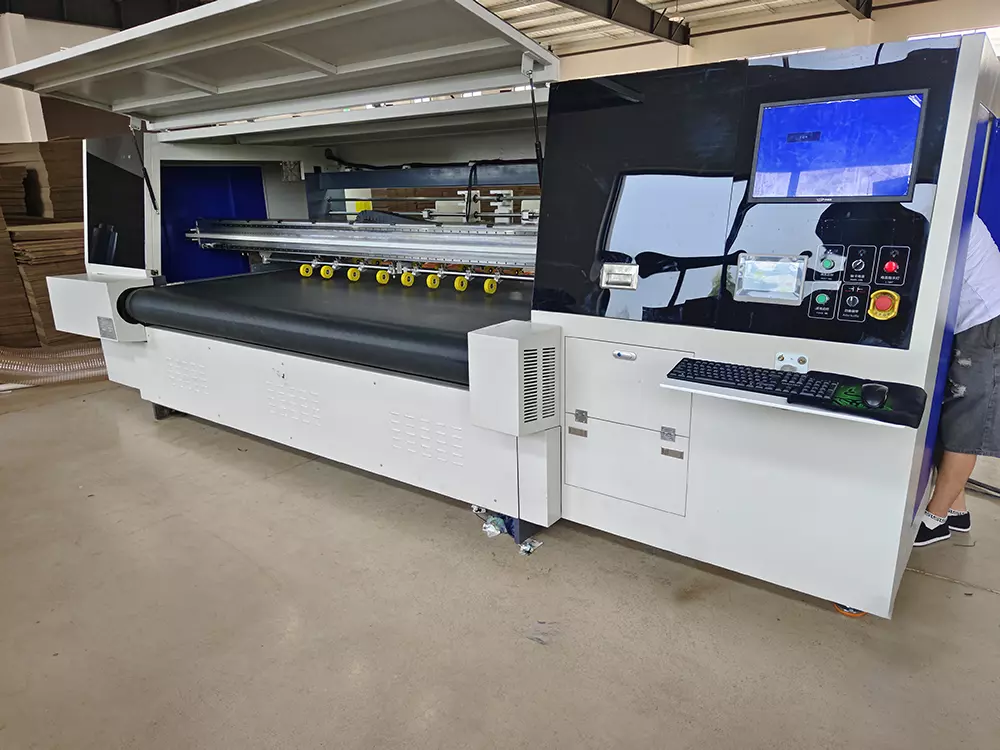

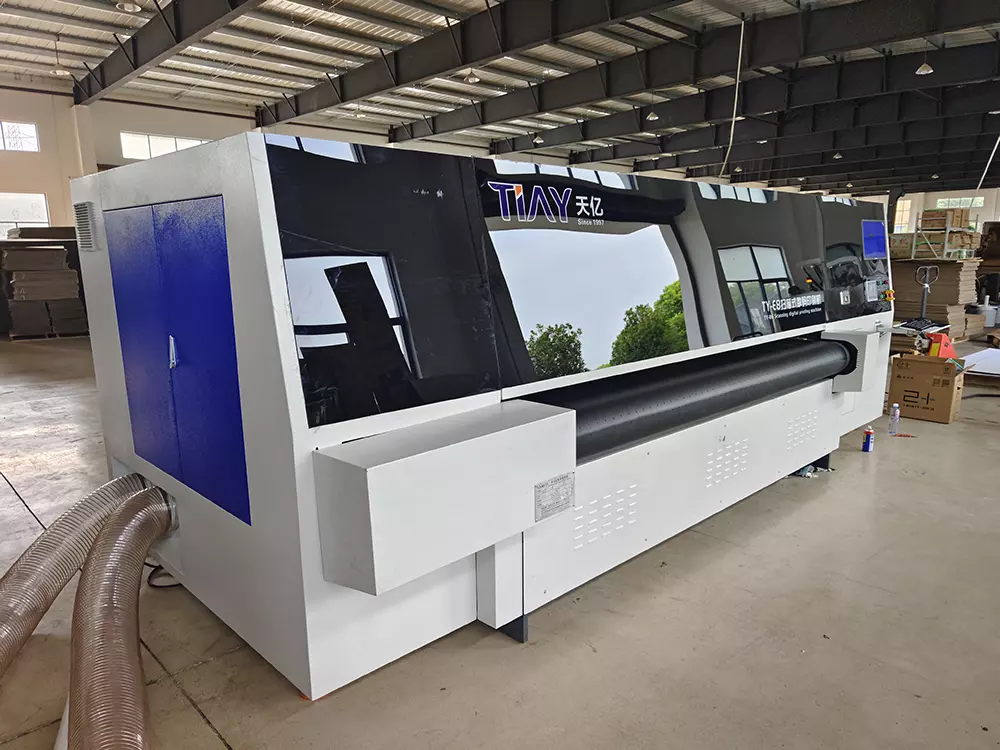

Product Description
Traceability code printing: can print continuously variable QR codes, clear codes, etc. according to customer requirements
Motion system: linear motor, high-precision servo system
Item number management: Item number queue management system, automatic switching (JQM function), real-time communication with factory MES system
High degree of automation: Automatic feeding device, high-sensitivity laser eye detection, smooth flat belt feeding with stable paper feeding, adjustable gap, and position deviation less than 0.5mm. The system ensures precise and stable continuous printing
Media processing: leading edge paper feeding (optional), media positioning, vacuum adsorption, conveyor belt to ensure stability and high quality during the printing process of corrugated paper
Security configuration: Computing system, pause yellow light, security red light alarm, etc
Intelligent control: Each system is intelligently interlocked to ensure the safe and stable operation of the machine
Other functions: Ink cost statistics function, remote fault diagnosis and maintenance, production management system
Product Parameters
|
Order Code |
TY-E8/E16 Scanning Digital Printing Machine |
|
Nozzle type |
Epson I3200-A |
|
Nozzle configuration |
8H or 16H, four-color (C/M/Y/K), printing width 264mm |
|
Spray impression, Liouxing |
ONE PASS (compatible with multiple PASS scanning and printing modes) |
|
Ink type |
water-based ink |
|
Application field |
Direct printing of all absorbent materials such as corrugated cardboard, honeycomb cardboard, kraft paper, thin wooden boards, etc |
|
RIP accuracy |
600*360dpi、600*720dpl:1200*360dp1、1200*720dpi |
|
Production capacity |
4-16 heads (optional number of nozzles) |
|
Media information |
300m/h-700myh including feeding (depending on printing pattern) |
|
software |
Maximum printing width: 2500mm, paper width: 2550mm |
|
Input format |
PDF, JPEG, TIFF, AI, CDR, etc |
|
Construction site (minimum) |
7200 mm (length) x 6800 mm (width) x 2000 mm (height) |
|
Packing size of digital department |
4720mm (length) x 1720mm (width) x 1800mm (height) |
|
Packing size of paper feeding department |
3100 mm (length) x 1700 mm (width) x 1500 mm (height) |
|
Power and electricity consumption |
Three phase 380V, 20A, 50 Hz, total power 8 kW |
|
Air source requirements |
Pressure: ≥ 6Kg/c ㎡ Flow rate ≥ 34 liters/min |
|
Environmental Requirements |
Relative humidity: 40% -60%; Environmental temperature: 22 ℃ -30 ℃ |
|
Device dimensions |
3500 mm (feeding direction) x4800 mm (width) x1900 mm (height) |
|
Net weight of equipment |
3500kg |
Supporting services
1. One year warranty for the entire machine (excluding consumables such as nozzles, ink cartridges, grating strips, grating sensors, fiber optic cables, and ink path systems)
2. Except for consumables, other components can be replaced free of charge within one year unconditionally as long as they are not damaged by human factors.
3. Technicians receive free on-site installation training, nationwide warranty, video training, and free technical consultation.
4. Provide free technical support for color management software to customers.
5. Provide free technical support for various processes during the customer's production process.
6. Provide free post software upgrade services.
